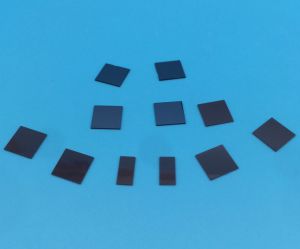

NdGaO3
NdGaO3 (Neodymium Gallate) is mainly used as a substrate for epitaxial film growth of high-temperature superconductors (such as YBCO) and magnetic materials. Because the lattice mismatch between NdGaO3 and YBCO is very small (~0.27%), and there is no structural phase change, a good quality film can be epitaxially grown on the NdGaO3 substrate.
使用/应用
Mainly used as a substrate for epitaxial film growth of high-temperature superconductors (such as YBCO) and magnetic materials.
特点/优势
LLattice mismatch between NdGaO3 and YBCO is very small (~0.27%), and there is no structural phase change, a good quality film can be epitaxially grown on the NdGaO3 substrate.
-
Crystal Structure
Orthogonal
Lattice Constant
a=5.43 Å, b=5.50 Å, c=7.71 Å
Melting point
1600℃
Density
7.57 (g/cm3)
Dielectric Constants
25
Growth Method
Czochralski
Dimension
10x3mm，10x5mm，10x10mm，15x15mm，20x15mm，20x20mm
Thickness
0.5mm，1.0mm
Polishing
One side or two sides
Orientation
＜100＞ ＜110＞ ＜111＞
Crystal Plane Orientation Accuracy
±0.5°
Edge Orientation Accuracy
2°（Special requirements can reach within 1°）
Bevel Wafer
According to specific requirements, wafers with edge-oriented crystal planes inclined at a specific angle (inclination angle 1°-45°) can be processed.
Surface Roughness
Ra≤5Å（5×5µm）
Package
Class 100 clean bag, Class 1000 super clean room
-
Dimension
10x3mm，10x5mm，10x10mm，15x15mm，20x15mm，20x20mm
Thickness
0.5mm，1.0mm
